OB No.003-11055-5. An excellent outboard motor that will service you for many years to come. 12.OPTIONAL ACCESSORIES. 13.PROPELLER TABLE. Bore X Stroke. Operating Range rpm. Number of Cylinder.

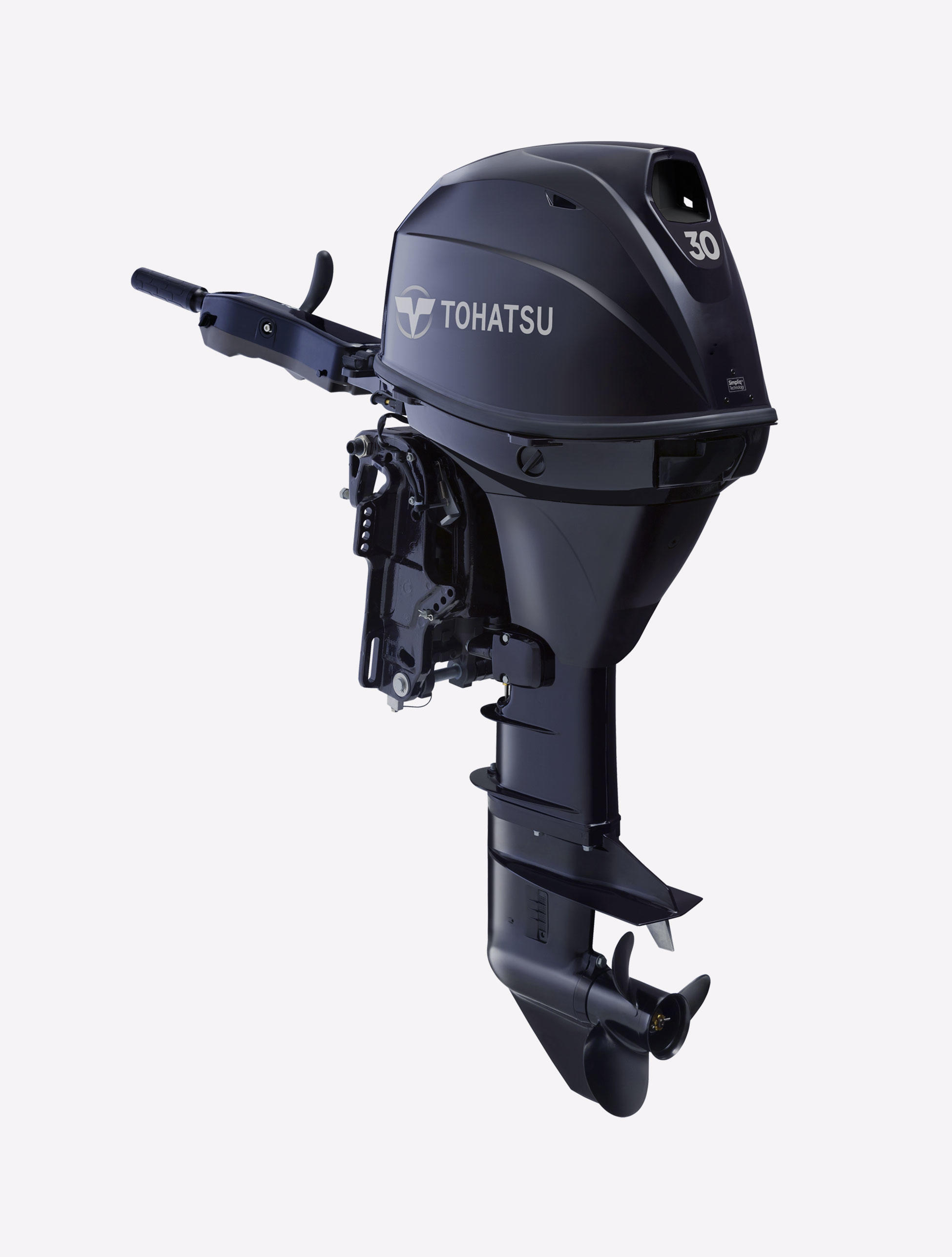

Model MFS30 Redesigned for 2015, our 30hp 4-stroke has it all! Whether you are cruising, fishing or working, the 30 hp EFI (Electronic Fuel Injection) will meet your needs.

We are the first to offer a battery-less EFI system that provides quick throttle response and very smooth rides on the water. The upper and lower motor cover features a more modern look, and easier access to regular maintenance items. Plus, the multi-function tiller handle comes standard on all 30 hp models with electric start. This tiller includes all controls conveniently located on the handle for easy access giving you more control, better maneuverability and increased safety. When you need compact power, the 30hp 4-stroke has exactly what you need. Specifications Engine (No. Of Cylinder) 3 Output 30 hp (22.1 kw) Displacement 526 cc (32.09 cu.in.) Bore x Stroke 61 x 60 mm (2.4 x 2.36 in) Starting Electric or Manual Control Type Remote Control or Tiller Handle Gear Shift Forward - Neutral - Reverse Gear Ratio 1.92:1 Propeller Selection Range 8' - 14' Transom Height 15', 20' Fuel Unleaded Gasoline (87 Octane) Oil Type NMMA Certified FC-W® 4-stroke oil.

Tohatsu 30 Hp 4 Stroke Service Manual

SAE 10W-30/40 (SF, SG, SH, SJ) Oil Capacity 2 qt. (1800 mL) Fuel Tank 6.6 US Gal. (25 Lit) Separate Fuel Tank Weight. 157 lbs.

Tohatsu 90 Hp Outboard

(71.5 kg) Alternator Output 12V, 180W, 15A Max. RPM Range 5,250 - 6,250 Electric Fuel Injection S Digital CD Ignition System S Start In Gear Protection S Thermostat Controlled Cooling System S Through-The-Prop Exhaust S Shallow Water Drive O Oil Pressure Warning S Power Trim and Tilt O LEGEND:. S: Standard Features. O: Optional on Certain Models. Weight specification is based on the lightest version. FC-W® is a registered trademark of the National Marine Manufacturers Assoc.

(NMMA) Specifications and descriptions are subject to change without notice. Propellers Prop Type Load.

Diameter Pitch Blades Standard Equip. Part # Comments aluminum light 9.9 14.2 3 349B645291 aluminum light 9.6 13 3 3R0B645270 aluminum moderate 9.8 12 3 3R0B645250 aluminum moderate 9.8 11 3 3R0B645230 aluminum moderate 9.7 10 3 3R0B645210 aluminum heavy 9.9 9 3 3R0B645180 aluminum heavy 10.2 8.3 3 346B641065 stainless steel NA 10.125 13 3 NM889210130 stainless steel NA 10.125 12 3 NM889210120 stainless steel NA 10.125 11 3 NM889210110 stainless steel NA 10 10 4 NM889110110 stainless steel NA 10.125 10 3 NM889210100 stainless steel NA 10 9 3 NM889010109 stainless steel NA 10 9 4 NM889110109 stainless steel NA 10 8 3 NM889010108. Fuel Tanks + More Part Number Description 3H670-2002M Fuel line hose (primer bulb assembly & fuel connectors) 3FF70-2004M Fuel line hose (no connectors/fittings; fits all models) 394-70260-0 8mm (5/16') fuel connector (engine male) 3GR70-2500M 8mm (5/16') fuel connector (engine female) 9999800MA2 1/4' NPT (thread) fuel connector (tank male). Can be used on permanent tanks or fuel/water separators with 1/4' NPT (thread). 3B2-70281-0 8mm (5/16') fuel connector (tank female). Works with 9999800MA2 fuel connector. 1 Tohatsu Water/Fuel Separator Kit (includes one filter) 1 Replacement 10 micron filter (for Tohatsu Water/Fuel Separator) 99999-UF10K UNIKAS UF-10K Water/Fuel Separator Kit (includes one filter) 99999-UF10RF Replacement 10 micron filter for Unikas UF-10K (includes replace o-ring).

Tohatsu 6 Hp Manual

As a service to our customers, copies of our Owner's Manuals are available at no charge. The owner's manuals are in Adobe's 'PDF' format. In order to download/view these manuals you must have the Adobe Acrobat Reader installed on your computer.
